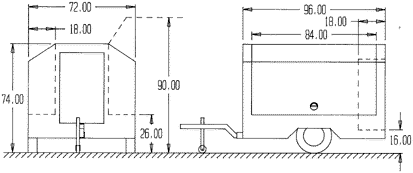

Side Open Side Closed Front Open

Up to 9 open stations or 7 enclosure equipped stations will provide temporary/portable phone service at Disaster Situations Sporting Events Fairs or Carnivals Outdoor Exhibitions Concerts All phones when mounted either with optional enclosures or as an open station meet the ADA guidelines for accessibility. When an additional phone is mounted inside the rear compartment it will meet the ADA guidelines for frontal wheelchair access. SPECIFICATIONS 6 feet wide x 8 feet long x 6.5 feet high when transported Welded steel frame with torsion bar axle and black corrosion resistant finish Total weight 1600 pounds (not including phones or enclosures) Trailer body made of Fiberglass Reinforced Plywood (FRP) Removable tongue with 2S ball coupling and safety chain Gull wing side doors equipped with gas-assisted shocks and positive lock system Torsion type axle with EZ-lube hubs and 13S load range RCS tires Integral wiring harness for parallel taillight operation Power service 120v60hz with 25U cable and 30 amp breaker OPTIONS Two piece mast with top portion removable for transport and storage Spare tire Fluorescent lighting under gull wing side canopies Cellular pay phone configuration Directory Facilities Custom branding available

---
